Non-Asbestos Gaskets & Sheets
Blaylock Gasket & Packing is proud to stock an extensive inventory of non-asbestos sheet material that can be used to create gaskets or sold by the sheet. Our non-asbestos sheet is a compressed sheet produced from a combination of aramid and other synthetic fibers and bonded with several binders, the most common being nitrile rubber gasket material (NBR).
- Blaylock now offers a sanitary non-asbestos rated to NSF 61 and US
FDA 21 CFR 177.2600
NBR is a popular material for valves and pumps that offers solid temperature and chemical resistance, thanks to its unique makeup. Common applications for non-asbestos gaskets are sealing, automotive, oil & gas and those that involve acids and other chemicals.
What is Non-Asbestos?
As the name suggests, non-asbestos is a line of gasketing materials free from asbestos. In previous decades, Asbestos, a naturally occurring mineral, was a popular ingredient in many gasket sheets. However, as more information came out linking asbestos to diseases like lung cancer and mesothelioma, asbestos fell out of use in society and in the gasketing industry. Today’s modern non-asbestos sheets offer the same tremendous sealing properties, without the risk.
Some people refer to non-asbestos sheeting as “paper” gaskets or as “Garlock™” referring to the brand name of popular non-asbestos sheeting.
What are the advantages of Blaylock Non-Asbestos?
- VARIETY: We offer sheets, strips, cut parts, gaskets and more from dozens of non-asbestos materials. We stock materials as thin as 1/64” all the way up to ¼”. There are specially formulated sheets to your specific application – and Blaylock stocks them.
- CUSTOMIZABLE: We can cut you standard ANSI flanges or precision cut parts, with tight tolerances and exact requirements.
- AFFORDABILITY: We stock hundreds of sheets of material, and offer economical options for every budget.
NBR Gasket Material Benefits:
- High pressure & heat resistance
- Top sealing power
- Excellent torque retention
- Oil resistant (petroleum, mineral & vegetable oil)
What industries use Non-Asbestos Gaskets?
- Automotive
- Aircraft
- Fuel Systems
- Marine
- Military
How do I choose which Non-Asbestos to use?
Our team is at the ready to help you select an ideal material – and while we always recommend you test a material for its utility, the more information about your application the better. Data on temperature, media being sealed, pressure, and regulatory requirements can help us help you.
Non-Asbestos Materials
Commercial Grade Non-Asbestos
Our commercial grade non-asbestos is great for water, gases, oils, and acids in mild service. This commercial sheet is economical and works great in many petroleum based applications and general industrial media.
Green Non-Asbestos by the Numbers
| Color | Makeup | Temperature | Thickness |
| Green or Blue |
Aramid Fiber NBR Binder |
390F operating | 1/64” to 1/4” |
These numbers are a general guide and are subject to change at any time. Our team offers materials to meet any project. If you have special requirements for things like color, tensile, temperature, durometer, etc, please reach out to our team. Just because material listed doesn’t meet your spec does not meet it is not available.
Properties and application parameters shown throughout this datasheet are typical. Your specific application should not be undertaken without independent study and evaluation for suitability. For specific application recommendations consult Blaylock Gasket. Failure to select proper sealing products could result in property damage and/or serious personal injury.
Aramid & NBR Non-Asbestos
This non-asbestos offers added toughness for industrial applications, including pressure environments (725pis operating up to 1595psi max service. Meets ASTM F104 F712120E22M5
Green Non-Asbestos by the Numbers
| Color | Makeup | Temperature | Thickness |
| Green, White or Blue |
Aramid Fiber NBR Binder |
460F operating / 750F Max | 1/64” to 1/4” |
These numbers are a general guide and are subject to change at any time. Our team offers materials to meet any project. If you have special requirements for things like color, tensile, temperature, durometer, etc, please reach out to our team. Just because material listed doesn’t meet your spec does not meet it is not available.
Properties and application parameters shown throughout this datasheet are typical. Your specific application should not be undertaken without independent study and evaluation for suitability. For specific application recommendations consult Blaylock Gasket. Failure to select proper sealing products could result in property damage and/or serious personal injury.
Carbon Fiber Non-Asbestos
This product is suitable for sealing petroleum derivatives, water, saturated steam, solvents, gases and chemical products in general. This material is excellent at elevated temperatures and pressures. Surface is coated with a graphite finish to prevent sticking. Meets ASTM F104 F712120E23M6
Green Non-Asbestos by the Numbers
| Color | Makeup | Temperature | Thickness |
| Charcoal | Carbon Fiber NBR Binder |
518F operating 842F Max |
1015psi (continuous) 1885psi (max) |
These numbers are a general guide and are subject to change at any time. Our team offers materials to meet any project. If you have special requirements for things like color, tensile, temperature, durometer, etc, please reach out to our team. Just because material listed doesn’t meet your spec does not meet it is not available.
Properties and application parameters shown throughout this datasheet are typical. Your specific application should not be undertaken without independent study and evaluation for suitability. For specific application recommendations consult Blaylock Gasket. Failure to select proper sealing products could result in property damage and/or serious personal injury.
CSM Non-Asbestos
This sheet is specially formulated to operate effectively against most acids in process industries. ASTM F104 F712000E00M5
Green Non-Asbestos by the Numbers
| Color | Makeup | Temperature | Thickness |
| Blue | Aramid Fiber CSM Binder |
392F operating 464F Max |
725psi (continuous) 1015psi (max) |
These numbers are a general guide and are subject to change at any time. Our team offers materials to meet any project. If you have special requirements for things like color, tensile, temperature, durometer, etc, please reach out to our team. Just because material listed doesn’t meet your spec does not meet it is not available.
Properties and application parameters shown throughout this datasheet are typical. Your specific application should not be undertaken without independent study and evaluation for suitability. For specific application recommendations consult Blaylock Gasket. Failure to select proper sealing products could result in property damage and/or serious personal injury.
Aramid/SBR Non-Asbestos
Sheet suited for process industries handling media like; mild acids and alkalis, water, brine, saturated steam, air, industrial gases, general chemicals, neutral solutions. ASTM F104 F712940E44M9
Green Non-Asbestos by the Numbers
| Color | Makeup | Temperature | Thickness |
| Grey or Black |
Aramid Fiber SBR Binder |
518F operating 716F Max |
725psi (continuous) 1015psi (max) |
These numbers are a general guide and are subject to change at any time. Our team offers materials to meet any project. If you have special requirements for things like color, tensile, temperature, durometer, etc, please reach out to our team. Just because material listed doesn’t meet your spec does not meet it is not available.
Properties and application parameters shown throughout this datasheet are typical. Your specific application should not be undertaken without independent study and evaluation for suitability. For specific application recommendations consult Blaylock Gasket. Failure to select proper sealing products could result in property damage and/or serious personal injury.
Aramid/Neoprene Non-Asbestos
Formulated for refrigerants, water, saturated steam, oils, fuels and mild acids. ASTM F104 F712120-B4E99M9.
Green Non-Asbestos by the Numbers
| Color | Makeup | Temperature | Thickness |
| Black | Aramid Fiber Neo Binder |
392F operating 698F Max |
Vacuum to 725psi |
These numbers are a general guide and are subject to change at any time. Our team offers materials to meet any project. If you have special requirements for things like color, tensile, temperature, durometer, etc, please reach out to our team. Just because material listed doesn’t meet your spec does not meet it is not available.
Properties and application parameters shown throughout this datasheet are typical. Your specific application should not be undertaken without independent study and evaluation for suitability. For specific application recommendations consult Blaylock Gasket. Failure to select proper sealing products could result in property damage and/or serious personal injury.
Sanitary Service Non-asbestos (NSF 61 & FDA)
This non-asbestos sheet is crafted to meet the stringent requirements of drinking water applications. Meets ASTM F104 F712120E12M5, NSF 61 and conformance per US FDA 21 CFR 177.2600
Green Non-Asbestos by the Numbers
| Color | Makeup | Temperature | Thickness |
| Blue | Compressed Fiber |
500F operating 752F Max |
1160psi (continuous) 1595psi (max) |
These numbers are a general guide and are subject to change at any time. Our team offers materials to meet any project. If you have special requirements for things like color, tensile, temperature, durometer, etc, please reach out to our team. Just because material listed doesn’t meet your spec does not meet it is not available.
Properties and application parameters shown throughout this datasheet are typical. Your specific application should not be undertaken without independent study and evaluation for suitability. For specific application recommendations consult Blaylock Gasket. Failure to select proper sealing products could result in property damage and/or serious personal injury.
Steam Sheet Non-Asbestos
For extreme thermal cycling, saturated & superheated steam. Also works well with liquid petroleum, ethanol and many chemicals. Operates well at high temperatures and pressure applications. Meets ASTM F104 F712140E33-M9
Green Non-Asbestos by the Numbers
| Color | Makeup | Temperature | Thickness |
| Charcoal | Inorganic Fibre NBR Binder |
806F operating 1022F Max |
1480psi (continuous) 2177psi (max) |
These numbers are a general guide and are subject to change at any time. Our team offers materials to meet any project. If you have special requirements for things like color, tensile, temperature, durometer, etc, please reach out to our team. Just because material listed doesn’t meet your spec does not meet it is not available.
Properties and application parameters shown throughout this datasheet are typical. Your specific application should not be undertaken without independent study and evaluation for suitability. For specific application recommendations consult Blaylock Gasket. Failure to select proper sealing products could result in property damage and/or serious personal injury.

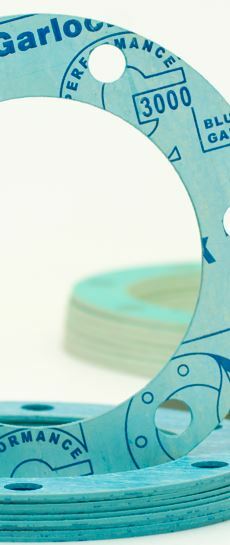

Garlock™ Blue-Gard®
We cut custom parts from all Garlock™ non-asbestos materials.
- Garlock™ 2900: Black Aramid-Nitrile Sheet
- Garlock™ 3000: Blue Aramid-Nitrile Sheet
- Garlock™ 3200: Off-White, Aramid-SBR Sheet
- Garlock™ 3300: Black, Aramid-Neoprene Sheet
- Garlock™ 3400: Grey, Aramid-SBR Sheet
- Garlock™ 3700: Grey, Aramid-EPDM Sheet
NA1001 - Compressed Sheet with Aramid Fibers/NBR Binder
| SERVICE LIMITS | ||
| Type | Description | Value |
| Temperature Limits | Maximum | 750°F (400°C) |
| Continuous Max | 460°F (240°C) | |
| Pressure Limits | Maximum | 1595 psi (110 bar) |
| Continuous Max | 725 psi (50 bar) | |
| ASTM Line Call Out F104 | F712120E22M5 | |
| Color | Green,White, or Blue | |
| Available Sheet Sizes | Thickness | 1/64", 1/32", 1/16", 3/32", 1/8" |
| Sheet Sizes | 59" x 63" | |
| 59" x 126" | ||
| 118" x 126" | ||
NA1076 - Compressed Sheet with Aramid Fibers/Neoprene Binder
| SERVICE LIMITS | ||
| Type | Description | Value |
| Temperature Limits | Minimum/Maximum | -40°F (-40°C)/700 F (370 C) |
| Continuous Max. | 392°F (200 C) | |
| Pressure Limits | Vacuum to 725 psi (50 bar) | |
| ASTM Line Call Out | ASTM F104-F712120-B4E99M9 | |
| Color | Black | |
| Available Sheet Sizes | Thickness | 1/64", 1/32", 1/16", 3/32", 1/8" |
| Sheet Sizes | 59" x 63" | |
| 59" x 126" | ||
| TYPICAL PHYSICAL PROPERTIES* | ||
| ASTM Test Method | Property | Value |
| F 36 | Compressibility | 7-17% |
| F 36 | Recovery | 46% |
| F 38 | Creep relaxation | 20% |
| F146 | Weight Increase After 5 Hour Immersion | |
| ·ASTM Fuel B @77°F (25°C) | <_20% | |
| Thickness Increase After 5 Hour Immersion | ||
| ·ASTM IRM 903 @ 300°F (150°C) | <_30% | |
| ·ASTM Fuel B @77°F (25°C) | <_20% | |
| Tensile Strength Across Grain | 1740 psi | |
| Density | 106 lb/ft^3 (1.70 gm/cc) | |
NA1080 - Compressed Sheet with Aramid Fibers/SBR Binder
| SERVICE LIMITS | ||
| Type | Description | Value |
| Temperature Limits | Maximum | 716°F (380°C) |
| Continuous Max | 490°F (270°C) | |
| Pressure Limits | Maximum | 1015 psi (70 bar) |
| Continuous Max | 725 psi (50 bar) | |
| ASTM Line Call Out F104 | F712940E44M5 | |
| Color | Off White | |
| Available Sheet Sizes | Thickness | From 1/64" (0.4mm) to 1/8" (3.2mm) |
| Sheet Sizes | 59" (1500mm) x 63" (1600mm) | |
| 59" (1500mm) x 126" (3200mm) | ||
| TYPICAL PHYSICAL PROPERTIES | ||
| ASTM Test Method | Property | Value |
| - | Density | 122 lb/ft3 (1.96 g/cc) |
| F36 | Compressibility | 7-17% |
| F36 | Recovery | min 45% |
| F152 | Tensile Strength | 2030 psi (14 MPa) |
| F495 | Ignition Loss | max 28% |
| F146 | Thickness Increase After 5 Hour Immersion | |
| · ASTM oil IRM 903 @300°F (150°C) | max 40% | |
| · ASTM Fuel B @ 77ºF (25ºC) | max 20% | |
| F146 | Weight Increase After 5 Hour Immersion | |
| · ASTM oil IRM 903 @300°F (150°C) | max 30% | |
| · ASTM Fuel B @ 77ºF (25ºC) | max 30% | |
| F38 | Creep relaxation | 22% |
| Torque Retention (DIN 52913) | 37 N/mm2 | |
| F37 | Sealability at 1000 psi | 0.25 ml/h |
NA1081 - Compressed Sheet with Kevlar® Fibers/NBR Binder
| SERVICE LIMITS | ||
| Type | Description | Value |
| Temperature Limits | Maximum | 752°F (400°C) |
| Continuous Max | 500°F (260°C) | |
| Pressure Limits | Maximum | 1595 psi (110 bar) |
| Continuous Max | 725 psi (50 bar) | |
| ASTM Line Call Out F104 | F712220E23M5 | |
| Color | Blue or Gray | |
| Available Sheet Sizes | Thickness | From 1/64" (0.4mm) to 1/8" (3.2mm) |
| Sheet Sizes | 59" (1500mm) x 63" (1600mm) | |
| 59" (1500mm) x 126" (3200mm) | ||
| TYPICAL PHYSICAL PROPERTIES | ||
| ASTM Test Method | Property | Value |
| Density | 119.5 lb/ft3 (1.92 g/cc) | |
| F36 | Compressibility | 7-17% |
| F36 | Recovery | min 50% |
| F152 | Tensile Strength | 1820 psi (12.5 MPa) |
| F495 | Ignition Loss | max 26% |
| F146 | Thickness Increase After 5 Hour Immersion | |
| · ASTM oil IRM 903 @300°F (150°C) | max 15% | |
| · ASTM Fuel B @77ºF (25ºC) | max 15% | |
| F146 | Weight Increase After 5 Hour Immersion | |
| · ASTM oil IRM 903 @300°F (150°C) | max 15% | |
| · ASTM Fuel B @77ºF (25ºC) | max 15% | |
| F38 | Creep relaxation | 22% |
| Torque Retention (DIN 52913) | 37 N/mm2 | |
| F37 | Sealability at 1000 psi | 0.2 ml/h |
NA1085 - Compressed Sheet with Aramid Fibers/Hypalon Binder
| SERVICE LIMITS | ||
| Type | Description | Value |
| Temperature Limits | Maximum | 464°F (240°C) |
| Continuous Max | 362°F (200°C) | |
| Pressure Limits | Maximum | 1015 psi (70 bar) |
| Continuous Max | 725 psi (50 bar) | |
| ASTM Line Call Out F104 | F712000E00M5 | |
| Color | Cobalt Blue | |
| Available Sheet Sizes | Thickness | 1/64", 1/32", 1/16", 3/32", 1/8" |
| Sheet Sizes | 59" x 63" | |
| 59" x 126" | ||
| TYPICAL PHYSICAL PROPERTIES | ||
| ASTM Test Method | Property | Value |
| - | Density | 106 lb/ft3 (1.7 gm/cc) |
| F36 | Compressibility | 5-15% |
| F36 | Recovery | min 40% |
| F152 | Tensile Strength | 2030 psi (14 N/mm2) |
| F495 | Ignition Loss | max 37% |
| F38 | Creep relaxation | 26% |
| Torque Retention (DIN 52913) | 28 N/mm2 | |
| F37 | Sealability at 1000 psi | 0.2 ml/h |
NA1090 - Compressed Sheet with Inorganic Fibers /NBR Binder
| SERVICE LIMITS | ||
| Type | Description | Value |
| Temperature Limits | Maximum | 750°F (400°C) |
| Continuous Max | 480°F (250°C) | |
| Pressure Limits | Maximum | 1560 psi (110 bar) |
| Continuous Max | 1140 psi (80 bar) | |
| ASTM Line Call Cut F104 | F712290E33M4 | |
| Color | Black | |
| Available Sheet Sizes | Thickness | 1/64?, 1/32?, 1/16?, 3/32?, 1/8? |
| Sheet Sizes | 59? x 63? | |
| 59" x 126" | ||
| TYPICAL PHYSICAL PROPERTIES | ||
| ASTM Test Method | Property | Value |
| ASTM F1315 | Density | 96 lb/ft3 (1,54g/cc) |
| ASTM F36A | Compressibility | 7-17% |
| ASTM F36A | Recovery | min 45% |
| ASTM F152 | Tensile Strength | 1450 psi (10N/mm2) |
| ASTM F495 | Ignition loss | max 37% |
| ASTM F146 | Thickness Increase | |
| ? ASTM Oil IRM903, 5h/300ºF (150ºC) | max 20% | |
| ? Fuel B, 5h/77ºF (25ºC) | max 15% | |
| ASTM F146 | Weight Increase | |
| ? ASTM Oil IRM903, 5h/300ºF (150ºC) | max 25% | |
| ? Fuel B, 5h/77ºF (25ºC | max 20% | |
| ASTM F38 | Creep Relaxation | 23% |
| DIN 52913 | Torque Retention | 40 N/mm2 |
| ASTM F37A | Sealability at 1000 psi | 0,3 mL/h |
NA1092 – Compressed Sheet with Aramid Fibers/ Graphite /NBR
| SERVICE LIMITS | ||
| Type | Description | Value |
| Temperature Limits | Maximum | 750°F (400°C) |
| Continuous Max | 518°F (270°C) | |
| Pressure Limits | Maximum | 1885 psi (130 bar) |
| Continuous Max | 1015 psi (70 bar) | |
| ASTM Line Call Cut F104 | F7713130E43M5 | |
| Color | Black | |
| Available Sheet Sizes | Thickness | 1/64", 1/32", 1/16", 3/32", 1/8" |
| Sheet Sizes | 59" x 63" | |
| 59" x 126" | ||
| TYPICAL PHYSICAL PROPERTIES | ||
| ASTM Test Method | Property | Value |
| ASTM F1315 | Density | 100 lb/ft3 (1,6g/cc) |
| ASTM F36A | Compressibility | 10-20% |
| ASTM F36A | Recovery | min 37% |
| ASTM F152 | Tensile Strength | 1740 psi (12N/mm2) |
| ASTM F146 | Thickness Increase | |
| ? ASTM Oil IRM903, 5h/300ºF (150ºC) | max 15% | |
| ? Fuel B, 5h/77ºF (25ºC) | max 15% | |
| ASTM F146 | Weight Increase | |
| ? ASTM Oil IRM903, 5h/300ºF (150ºC) | max 25% | |
| ? Fuel B, 5h/77ºF (25ºC) | max 30% | |
NA1100 - Compressed Sheet with Carbon Fibers /NBR Binder
| SERVICE LIMITS | ||
| Type | Description | Value |
| Temperature Limits | Maximum | 840°F (450°C) |
| Continuous Max | 518°F (270°C) | |
| Pressure Limits | Maximum | 1900 psi (130 bar) |
| Continuous Max | 1000 psi (70 bar) | |
| ASTM Line Call Out F104 | F712120E23M6 | |
| Color | Black | |
| Available Sheet Sizes | Thicknesses | 1/64", 1/32", 1/16", 3/32", 1/8" |
| Sheet Sizes | 59" x 63" | |
| 59" x 126" | ||
| 118" x 126" | ||
| TYPICAL PHYSICAL PROPERTIES | ||
| ASTM Test Method | Property | Value |
| - | Density | 106 lb/ft³ (1.7 gg/cc) |
| F36 | Compressibility | 5-15% |
| F36 | Recovery | min 50% |
| F152 | Tensile Strength Across Grain | 2175 psi (15 N/mm²) |
| F495 | Ignition Loss | max 50% |
| F146 | Thickness Increase After 5 Hour Immersion | |
| · ASTM IRM 903 @300°F (150°C) | max 15% | |
| · ASTM Fuel B @77°F (25°C) | max 15% | |
| F146 | Weight Increase After 5 Hour Immersion | |
| · ASTM IRM 903 @300°F (150°C) | max 15% | |
| · ASTM Fuel B @77°F (25°C) | max 15% | |
| F38 | Creep relaxation | 22% |
| Torque Retention (DIN 52913) | 35 N/mm² | |
| F37 | Sealability at 1000 psi | 0.2 ml/h |
NA1000M - Compressed Sheet with Aramid Fibers/Metal/NBR Binder
| SERVICE LIMITS | ||
| Type | Description | Value |
| Temperature Limits | Maximum | 720°F (380°C) |
| Continuous Max | 390°F (200°C) | |
| Pressure Limits | Maximum | 1450 psi (100 bar) |
| Continuous Max | 580 psi (40 bar) | |
| ASTM Line Call Out F104 | ASTM 713230E23M6 | |
| Color | Black | |
| Available Sheet Sizes | Thickness | 1/32", 1/16", 3/32", 1/8" |
| Sheet Sizes | 59" x 63" | |
| 59" x 126" | ||
| TYPICAL PHYSICAL PROPERTIES | ||
| ASTM Test Method | Property | Value |
| - | Density | 118 lb/ft3 (1.9 g/cm) |
| F36 | Compressibility | 10-20% |
| F36 | Recovery | min 40% |
| F152 | Tensile Strength Across Grain | 2680 psi (18.5 N/mm2) |
| F495 | Ignition Loss | max 37% |
| F146 | Thickness Increase After 5 Hour Immersion | |
| · ASTM IRM 903 @300°F (150°C) | max 20% | |
| · ASTM Fuel B @77°F (25°C) | max 15% | |
| F146 | Weight Increase After 5 Hour Immersion | |
| · ASTM IRM 903 @300°F (150°C) | max 20% | |
| · ASTM Fuel B @77°F (25°C) | max 15% | |
| F38 | Creep relaxation | - |
| Torque Retention (DIN 52913) | - | |
| F37 | Sealability at 1000 psi | - |
Explore Other Materials
QUALIFICATIONS & CREDENTIALS
